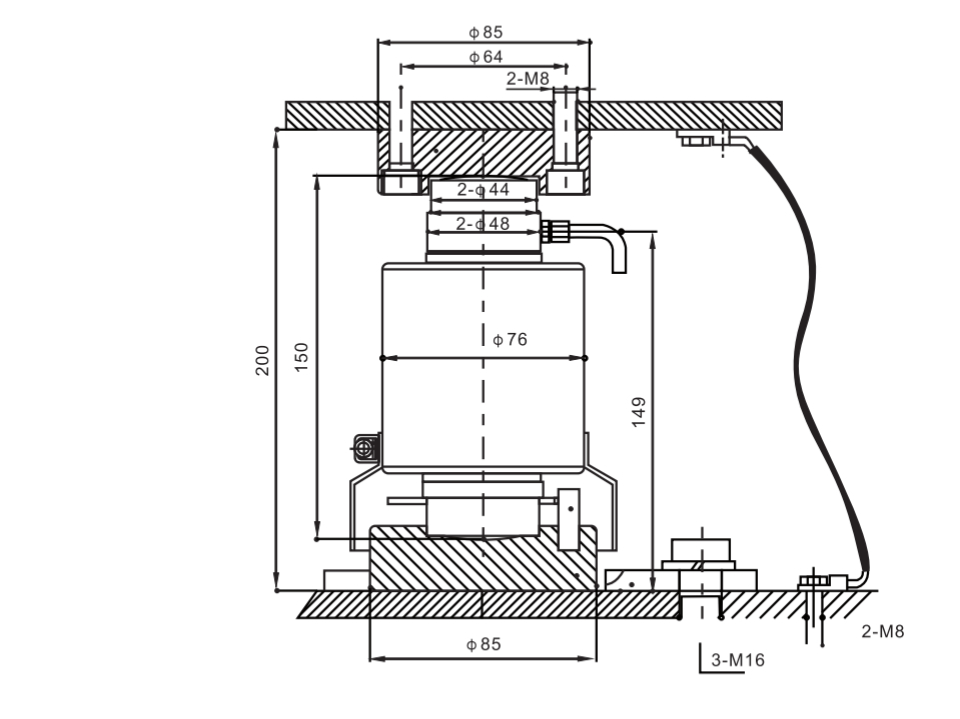

LOAD CELL ZSF-A

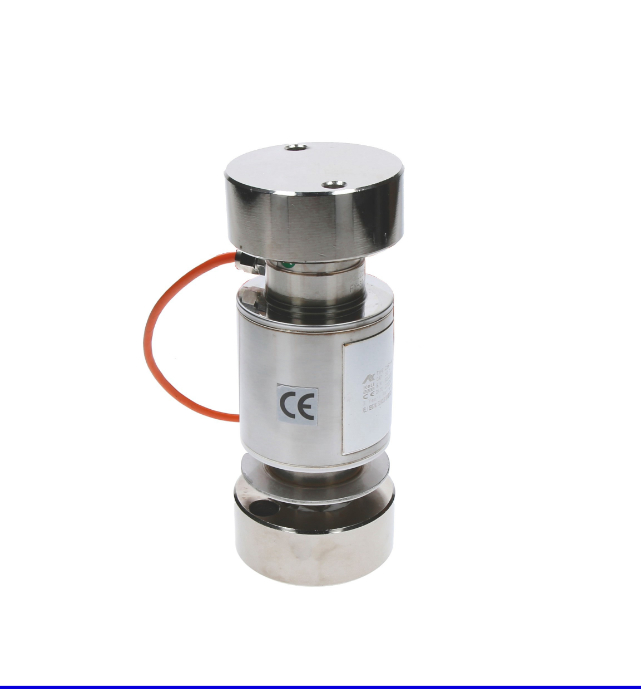

Load Cell Keli รุ่น ZSF-A

Rated capacities(Emax)	10,15,20,25,30,40,50t
Sensitivity	2.0 ± 0.002mV/V
Accuracy class	C2-C5
Zero balance	± 1% F.S.
TCO (Temperature Coefficient of Offset)	± 0.02% F.S. /10ํ°C
TC SPAN (Temperature Coefficient of Span)	± 0.02% F.S. /10ํ°C
Input impedance	400 ± 20 Ω
Output impedance	352 ± 3 Ω, 352 ± 5 Ω (L ≥15m)
Insulation impedance	≥5000 MΩ
Temperature range, compensated	-10°C ~ +40°C
Temperature range, operating	-30°C ~ +70°C
Maximum safe overload	150% F.S.
Ultimate overload	250% F.S.
Excitation, recommend	10~12V DC
Excitation maximum	15V DC
Protection class	IP68
Construction	Alloy Steel or Stainless Steel
Cable diameter	5 mm, 4 core
Cable Length	8m(10t), 10m(15t), 12m(20-25t), 14m(30t), 16m(40t)
