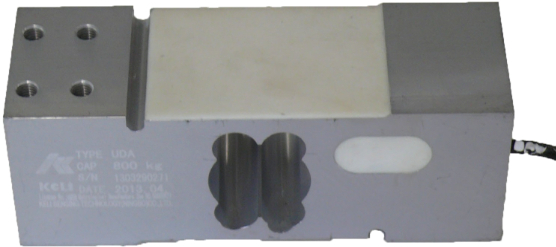

Load cell KELI รุ่น UDA
TECHNICAL PARAMETER
| Rated capacities(Emax) | 150, 300, 500, 800 Kg |
| Sensitivity | 2.0 ± 0.002mV/V |
| Accuracy class | OIML C3 |
| Creep error (30min) | ±166ppm |
| Zero balance | ± 3% F.S. |
| TCO (Temperature Coefficient of Offset) | ± 17.5ppm /°C |
| TC SPAN (Temperature Coefficient of Span) | +20°C ~ +40°C ± 17.5ppm |
| -10°C ~ +20°C ± 11.67ppm | |
| Input impedance | 404 ± 15 Ω |
| Output impedance | 350 ± 3 Ω |
| Insulation impedance | ≥2000 MΩ (50V DC) |
| Temperature range, compensated | -10°C ~ +40°C |
| Temperature range, operating | -30°C ~ +50°C |
| Maximum safe overload | 150% Emax |
| Ultimate overload | 300% Emax |
| Excitation, recommend | 10V DC |
| Excitation maximum | 15V DC |
| Protection class | IP65 |
| Construction | Aluminium |
| Cable diameter | 5 mm, 4 core |
| Cable Length | 1.8m |
