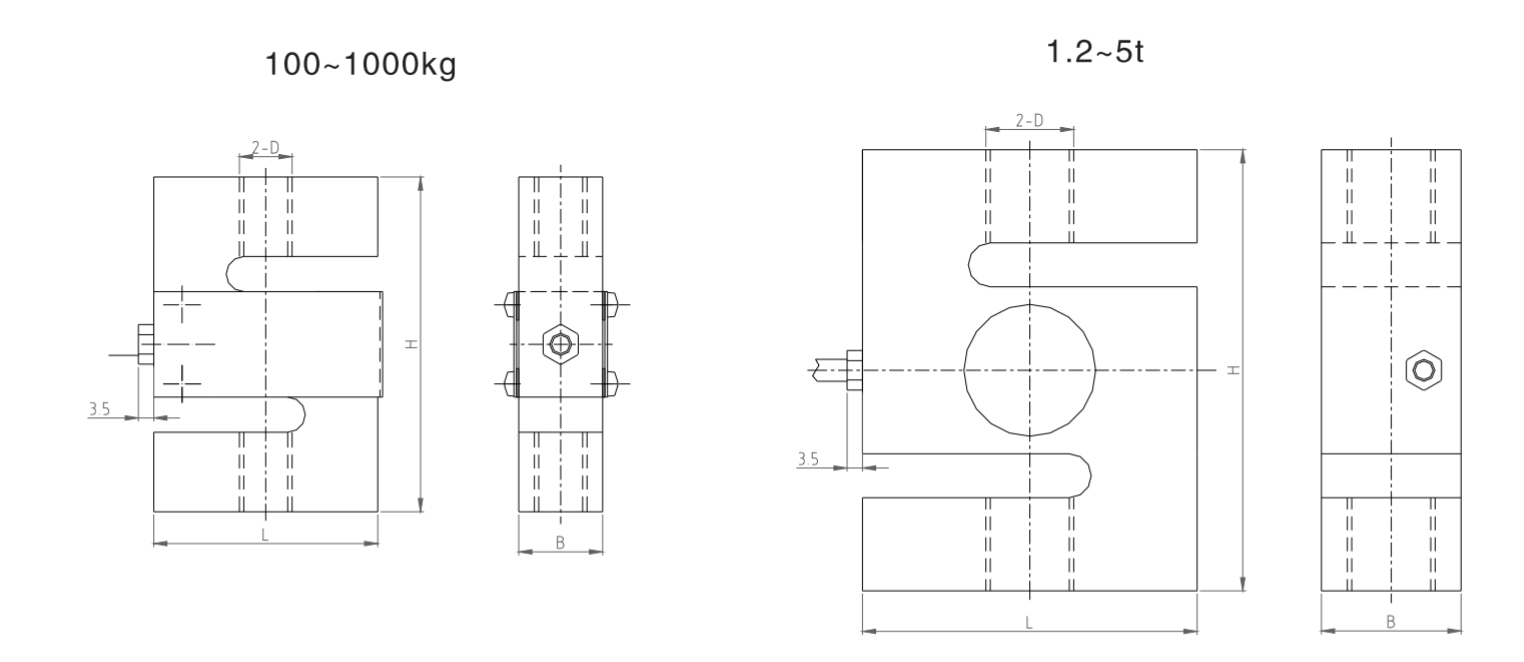

| Rated capacities(Emax) | 100,150,250, 500, 750Kg 1, 2, 3, 5t |
| Sensitivity | 3.0± 0.003mV/V |
| Accuracy class | C2 – C5 |
| Zero balance | ± 1% F.S. |
| TCO (Temperature Coefficient of Offset) | ± 0.02%F.S. /10°C |
| TC SPAN (Temperature Coefficient of Span) | ± 0.02%F.S. /10°C |
| Input impedance | 400 ± 20 Ω |
| Output impedance | 352 ± 3 Ω |
| Insulation impedance | ≥5000 MΩ |
| Temperature range, compensated | -10°C ~ +40°C |
| Temperature range, operating | -30°C ~ +70°C |
| Maximum safe overload | 120% F.S. |
| Ultimate overload | 150% F.F. |
| Excitation, recommend | 10V ~ 12V DC |
| Excitation maximum | 15V DC |
| Protection class | IP65(100 ~ 1000Kg),IP68(1.2 ~ 5t) |
| Construction | Alloy Steel or Stainless Steel |
| Cable diameter | ⌀5mm, 4 core |
| Cable Length | 5m |
| |
